Megan

3 625 SEK
3 625 SEK
Sale Sold out
Tax included. Shipping calculated at checkout.
Megan (Enclosure)
Megan baseplate (Type)

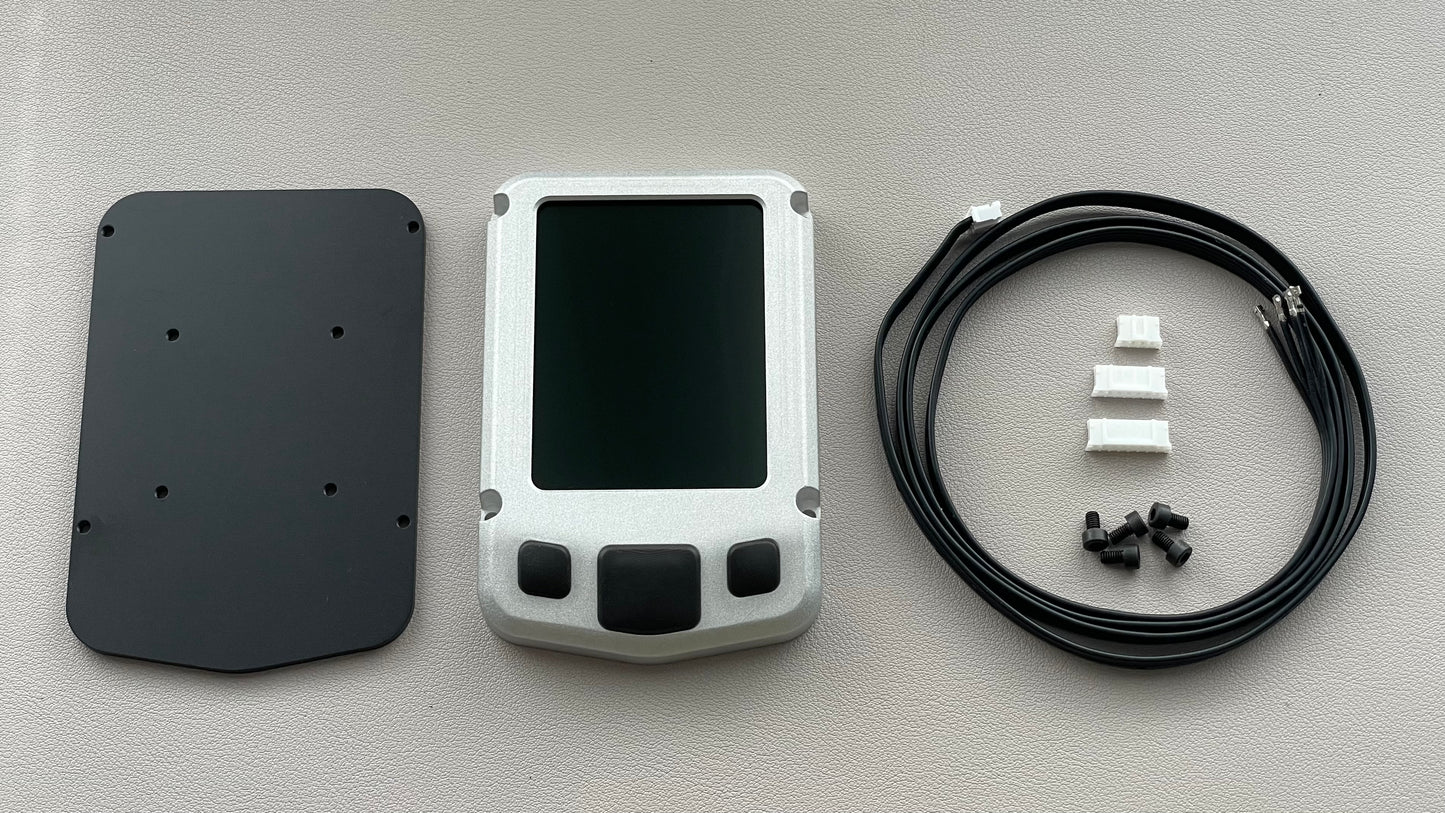

Megan is a display for personal electric vehicles running on VESC™ controllers. It combines the features of our older products -- DAVEGA X and Metr Pro.

Compared to DAVEGA, Megan offers a slightly larger display and a much improved performance. Screen switching is now lightning fast.

Megan has all the features of the Metr Pro bluetooth module. It is compatible with the Metr mobile app as well as with the VESC Tool.

Megan comes with a built-in GPS module and 16 MB of flash memory to allow offline ride logging without the mobile app.

Read more at https://voyagesystems.eu/megan

Baseplates

Please see the Megan baseplate product item for details.

ESC compatibility

Megan works with all VESC based controllers running the official VESC firmware version 3.48 or later. Legacy Unity firmware is not supported.

Hardware

  • Dimensions
    • Housing: 107mm x 71mm x 14mm
    • Baseplate: 107mm x 71mm x 3mm
  • 3.2" TFT LCD display
  • 1x CAN bus port
  • 1x UART port
  • 16 MB flash memory
  • Bluetooth 5 (low energy)
  • 2.4 GHz, 802.11 b/g/n Wi-Fi
  • Beitian BE-122 GPS module
  • 110 cm cable (JST PH to PH)

Features

  • On-screen realtime data for up to 4WD
    • speed
    • battery state-of-charge
    • consumption
    • remaining range
  • Customizable screen
  • Ride logging
  • Smart BMS integration (Ennoid BMS, FlexiBMS, Daly BMS)
  • Secure BLE with PIN code
  • Over-the-air firmware updates
  • Mobile app compatible with iOS and Android
