Minnie

Minnie is a successor of the popular Metr Pro CAN module. It comes with the BE-180 GPS module (can optionally be excluded) and with 16 MB of built-in flash memory. Therefore, it does not require an SD card for offline ride logging. Logs can be automatically synced with cloud using the 2.4 GHz Wi-Fi. There are two CAN ports that allow daisy chaining. Minnie is compatible with the Metr mobile app as well as with the VESC Tool.

ESC compatibility

Minnie works with all VESC based controllers running the official VESC firmware version 3.48 or later. Legacy Unity firmware is not supported.

Hardware

• Dimensions 40mm x 28mm x 8mm
• 2x CAN bus port
• 16 MB flash memory
• Bluetooth 5 (low energy)
• 2.4 GHz, 802.11 b/g/n Wi-Fi
• 2x JST GH to PH 150mm cable
• Optional BE-180 GPS module

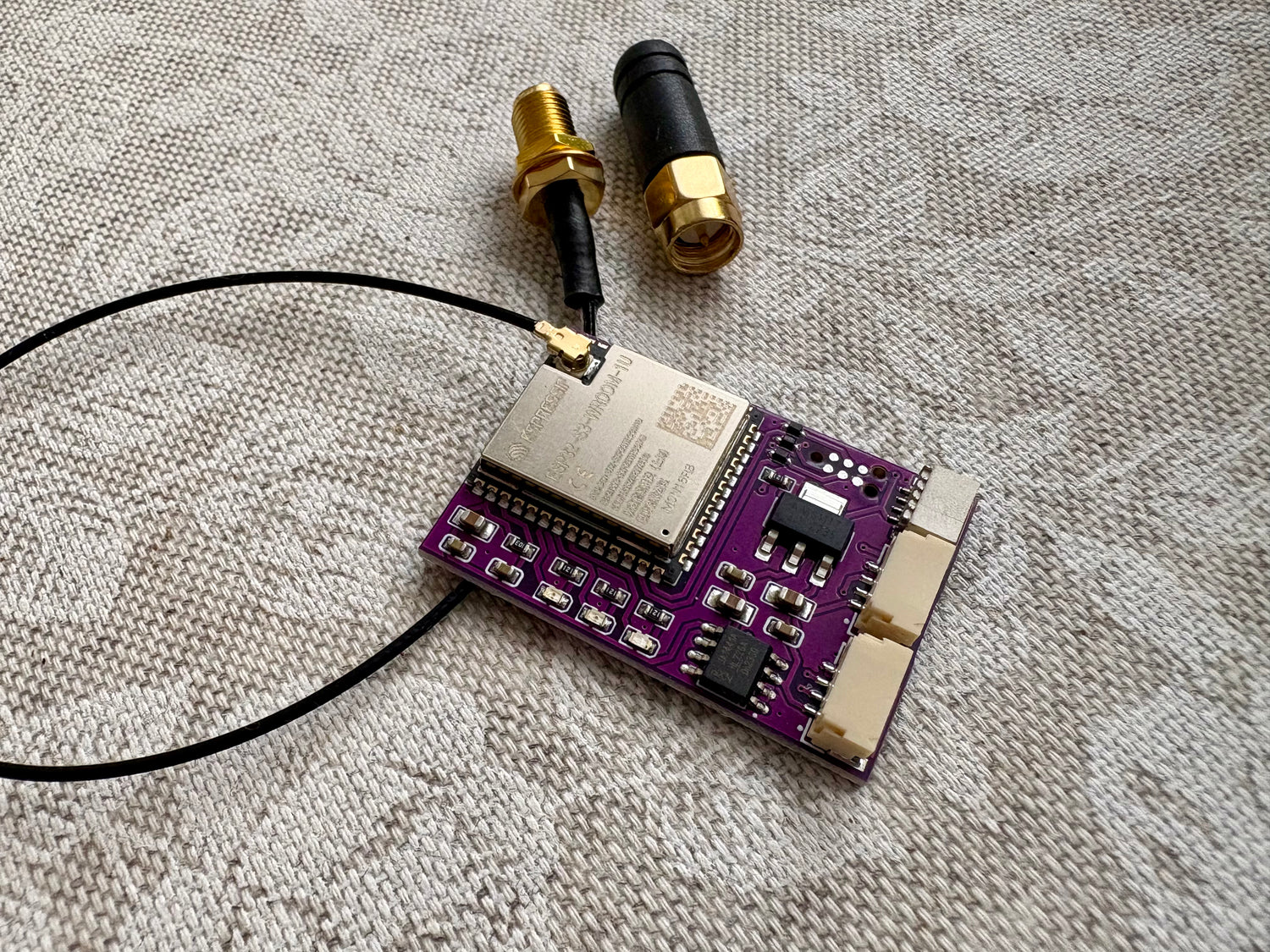

• Optional external antenna

Features

• Compatible with iOS and Android
• Plug and play setup
• Up to 4WD realtime data
• Secure BLE with PIN code
• Over-the-air firmware updates
• Automatic CAN baud detection
• Supports 50K, 100K, 125K, 250K, 500K, 1M bauds

Mobile app

Read more at https://voyagesystems.eu/minnie
